Our Budget Throttles are a 40mm thick Billet throttle made up for those wanting to save some money and either have an engine with the injectors in the cylinder head or they have the ability to modify their own manifold to include injector ports and also to make their own fuel rail. They are made to bolt onto a DCOE Side draft manifold which is readily available for a lot of engines. Contact Rowland Manifolds in Cape Town, they make lots of different ones. They are a complete set as in the below pictures, they are also shipped completely assembled and bolted onto a shipping bracket. They are made up in sets of 2 per body so will only work on 2 cylinder, 4 cylinder, 6 cylinder etc. They come with Ram tubes of your choice of either 80mm or 100mm long. TPS (Throttle position Sensor) and a plug. Throttle cable linkages (either from the left or the right, see below pics). Idle adjustment brackets.
The Budget Throttles sell for R6000incl VAT for a 4 cylinder set. R4000incl VAT for a 2 cylinder set. R12000incl VAT for a 6 cylinder set.

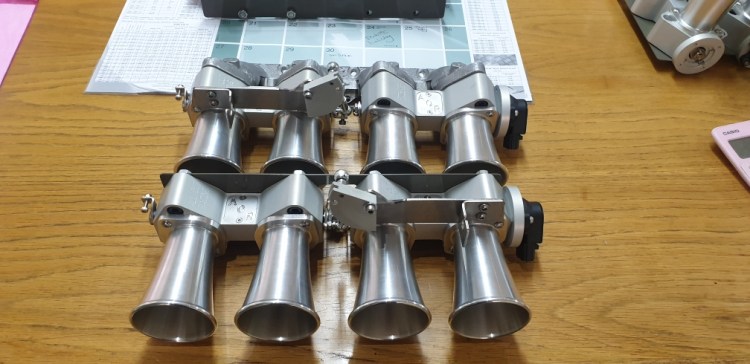

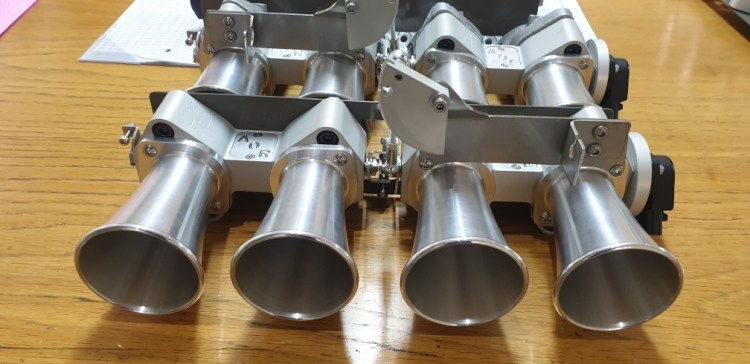

The upper set of throttles in the below Picture shows the cable from the Left Hand side. The lower set in the below picture shows the cable from the Right Hand side.

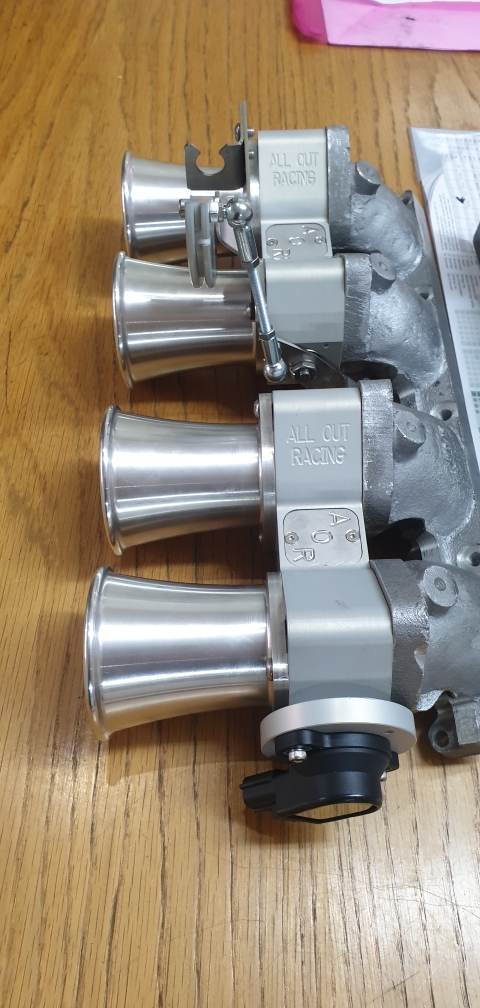

The below picture shows the throttles bolted to a side draft manifold (not included)
